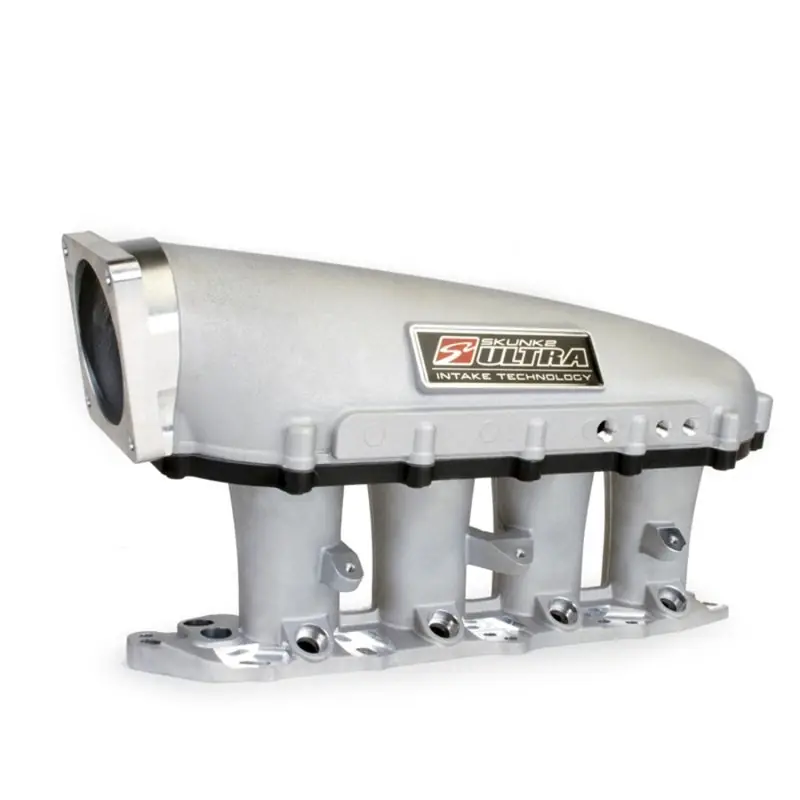

Clearance Skunk2 Ultra Series Intake Manifold w/ Black B VTEC 3.5L

Description

Manufacturer Part # : 307-05-9050

Market Description

Skunk2 Racing is proud to announce the next generation of high performance intake manifolds for the Honda B16A/ B17A and B18C engine or VTEC cylinder heads! The much anticipated Ultra Race Intake Manifold is the result of years worth of R&D and building upon the performance legacy of our Pro Series Intake Manifold. Using the latest in CFD (Computational Fluid Dynamics) software; Skunk2 Racing has created a three-piece modular design that allows for easy disassembly, porting, and plenum volume changes through the use of a removable plenum and optional plenum spacers. The result is a design that is less restrictive, yielding both torque and power gains well over many of the competitors.

Product Description – Extended

Ultra Series Race Intake Manifold; 3.5L Volume; 90mm TB Inlet/5.0 Ford Bolt Pattern; Mtg. Flange Fits B Series Vtec Heads; Black Adapter;

Features and Benefits

• Unique Mounting Flange Universally Fits All B Series VTEC Heads
• Provisions For Additional Injectors On Bottom Side Of Runners
• Optional Billet Aluminum Plenum Spacers In 1L Or 2L Sizes
• Raised 87mm Velocity Stacks – Plenty Of Material To Port
• 90mm Throttle Body Flange – Std. 5.0L Ford Pattern
• Available in 3.5L/4.5L And 5.5L Configurations
• 6.5 in. Tilted/Tapered Hi-Velocity Runners
• Generously Cast Runner Walls for Porting
• Includes Thermal Manifold Flange Gasket
• Hi-Grade Mounting Hardware
• US Patent No. D673977S

Product Description – Short

• Skunk2 Ultra Series Intake Manifold w/ Black B VTEC 3.5L
• Intake Manifold

Product Description – Long

Ultra Series Race Intake Manifold
